Notation: Draw Supported Notations of Explicit ConverterΒΆ
[1]:
import mechkit
import networkx as nx
import matplotlib.pyplot as plt
[2]:
plot_options = dict(
node_color="yellow",
node_size=2000,
width=2,
arrows=True,
font_size=10,
font_color="black",
)
[3]:
converter = mechkit.notation.ExplicitConverter()
[4]:

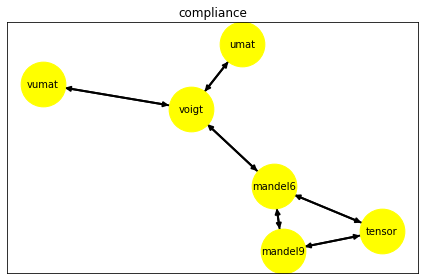

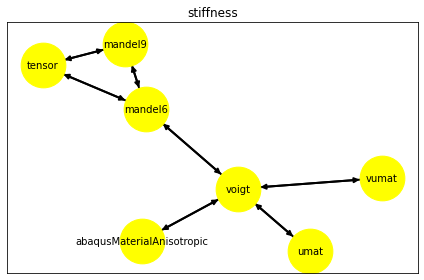

for entity_type, graph in converter.graphs_dict.items():
pos = nx.spring_layout(graph, seed=1)
fig = plt.figure()
nx.draw_networkx(graph, **plot_options)
plt.gca().set_title(entity_type)
plt.tight_layout()
